LG. LCD 4.0 inch 320(RGB)×240 , QVGA LB040Q02TD02
Specification for 4.0 inch 320(RGB)×240 , QVGA LB040Q02TD02 panel
1,LG. LCD LB040Q02-TD02 Basic Information
| Panel Brand : |  |
| Panel Model : | LB040Q02-TD02 |
| Model Alias : | LB040Q02 (TD)(02) |
| Panel Type : | a-Si TFT-LCD , Panel |
| Application : |
|
| Operating Temperature : | -30 ~ 85 °C |
| Storage Temperature : | -40 ~ 85 °C |
| Vibration Resistance : | 2.9G (28.4 m/s²) |
| RoHS : |  |
| Specific Feature : |
|
2,LG. LCD LB040Q02-TD02 Mechanical Features
| Panel Size : | 4.0 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 90/100g (Typ./Max.) |
| Surface : | Antiglare |
| Active Area : | 81.6×61.2 mm (H×V) |
| Bezel Area : | 85.4×65.0 mm (H×V) |
| Outline Dimension : | 98.4×78 mm (H×V) |
| Outline Depth : | 6.8±0.3 mm |
| Holes & Brackets : | No mounting hole |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
3,LG. LCD LB040Q02-TD02 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.20/1.40 (Typ./Max.)(9 points) |
4,LG. LCD LB040Q02-TD02 Electronics Feature
| Vertical Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Power Consumption : | 2.5W (Typ.) |
5,LG. LCD LB040Q02-TD02 Backlight System
| Lamp Position : | Edge light type |
| Lamp Type : | CCFL |
| Lamp Amount : | 1 pcs |
| Lamp Shape : | L shape |
| Lamp Life Time : | 20K(Min.) (Hours) |
| Lamp Voltage : | 370/390/510V (Min./Typ./Max.) |
| Lamp Current : | 3.0/6.0/6.5mA (Min./Typ./Max.) |
| Lamp Operating Frequency : | 35/60/80KHz (Min./Typ./Max.) |
| Lamp Startup Voltage : | 980/1260V (Max.)(Ta=+25/0℃) |
| Lamps Power Consumption : | 2.34/2.57W (Typ./Max.) |
6,LG. LCD LB040Q02-TD02 Signal Interface
| Signal Category : | TTL |
| Signal Class : | CMOS/TTL (1 ch, 6-bit) |
| Input Voltage for Panel : | 3.3/5.0V (Typ.)(VCC/VDD) |
| Interface Type : | FPC |
7,LG. LCD LB040Q02-TD02 Packing Form
| Amount per Box : | 156 pcs |
| Box Size : | 475×348×341 mm (L×W×H) |

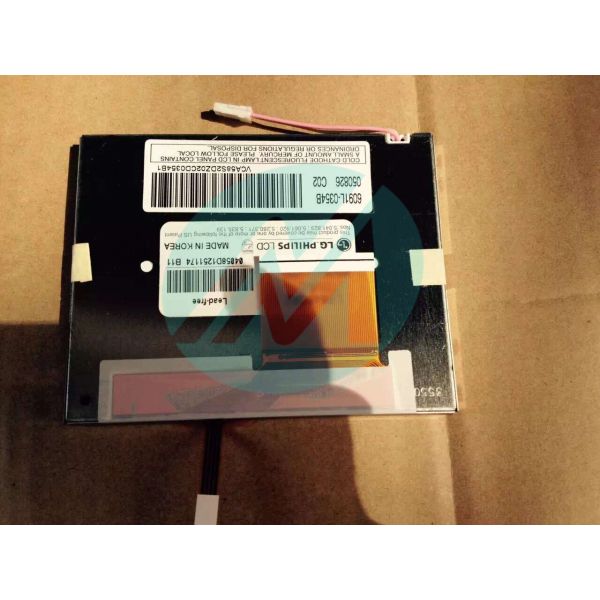

Detail picture for LG. LCD 4.0 inch 320(RGB)×240 , QVGA LB040Q02TD02
