AUO 5 Inch H499TLB01 V0 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

AUO 5 Inch H499TLB01 V0 LCD Panel

Place of Origin : PHILIPPINE

Brand Name : AUO

Certification : Lead free / RoHS Compliant

Model Number : H499TLB01 V0

MOQ : 1 PCS

Price : Contact for Sample

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T in advance, Paypal, Western Union

Supply Ability : 1000

Panel Model : H499TLB01 V0

Panel Brand : AUO

Descrition : AM-OLED ,5.0 inch, 720×1280

Panel Type : AM-OLED

Contact Now

AUO 5 Inch H499TLB01 V0 LCD Panel

Specification for H499TLB01 V0 :

Panel Model H499TLB01 V0
Panel Brand AUO
Descrition AM-OLED ,5.0 inch, 720×1280
Panel Type AM-OLED
Active Area 61.92×110.08 mm
Outline 65.92×118.64×1.15 mm
Surface
Contrast Ratio 10000 : 1 (Min.)
Display Colors 16.7M (8-bit) , CIE1931 100%
Viewing Angle 80/80/80/80 (Typ.)(CR≥1600) (L/R/U/D)
Frequency 60Hz
Driver IC Built-in RM69052
Signal Interface MIPI (4 data lanes) , 39 pins
Input Voltage 1.8/3.1/3.7V (Typ.)(VDDI/VDD/VBAT)

TM035WVHG02 TIANMA 3.5" 480×640
TM035WVHG10 TIANMA 3.5" 480×640
TM042NDZG04 TIANMA 4.2" 480×640
TM043NBH03 TIANMA 4.3" 480×272
TM043NBH05 TIANMA 4.3" 320×240
TM043NDHG02 TIANMA 4.3" 480×272
TM043NDHG08 TIANMA 4.3" 480×272
TM050JDHP36 TIANMA 5.0" 720×1280
TM050QDH07 TIANMA 5.0" 640×480
TM050QFHR01 TIANMA 5.0" 640×480
TM070DDH15 TIANMA 7.0" 1024×600
TM070RDH03 TIANMA 7.0" 800×480
G043FW01 V0 AUO 4.3" 480×272
G050VVN01.0 AUO 5.0" 480×800
G070Y1-T01 INNOLUX 7.0" 800×480
G080Y1-T01 INNOLUX 8.0" 800×480
G084SN03 V0 AUO 8.4" 800×600
g084sn05 v3 AUO 8.4" 800×600
HJ070IA-02F INNOLUX 7.0" 1280×800
HJ070NA-13A INNOLUX 7.0" 1024×600
HJ080IA-01F INNOLUX 8.0" 1024×768
HSD050I551-A00 HannStar 5.0" 320×234
Hsd050idw1-a20-r0 HannStar 5.0" 800×480
HSD062IDW1-A01 HannStar 6.2" 800×480
HSD070IDW1-A20 HannStar 7.0" 800×480

Below is some of our other LCD panel hot offer,pls check if you need any of them:


Product Tags:

motorola rf transistors



power rf transistor


Quality AUO 5 Inch H499TLB01 V0 LCD Panel for sale

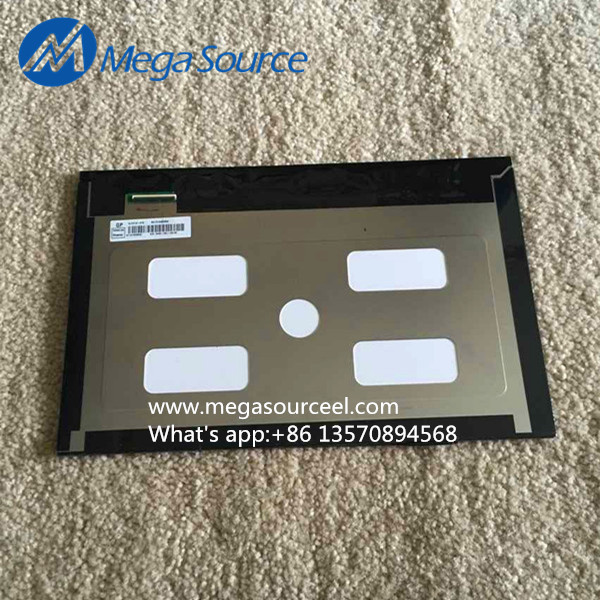

AUO 5 Inch H499TLB01 V0 LCD Panel Images
