Mitsubishi 8.4inch AA084XE11-DA-01 LCD Panel

Place of Origin : Japan

Brand Name : Mitsubishi

Certification : RoHS Compliant

Model Number : AA084XE11-DA-01

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : AA084XE11-DA-01

Panel Brand : Mitsubishi

Descrition : a-Si TFT-LCD ,8.4 inch, 1024×768

Panel Type : a-Si TFT-LCD

Contact Now

Mitsubishi 8.4inch AA084XE11-DA-01 LCD Panel

Specification for AA084XE11-DA-01:

AA084XE11-DA-01 Basic Information

Panel Model

AA084XE11-DA-01

Panel Brand

Mitsubishi

Descrition

a-Si TFT-LCD ,8.4 inch, 1024×768

Panel Type

a-Si TFT-LCD

Operating Temperature

-30 ~ 70 °C

Storage Temperature

-30 ~ 80 °C

Remarks

NCM

AA084XE11-DA-01 Mechanical Features

Dot Resolution

1024(RGB)×768 (XGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

152 PPI

Aspect Ratio

4:3 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.0555×0.1665 mm (H×V)

Pixel Pitch

0.1665×0.1665 mm (H×V)

Weight

TBD

Surface

Hard coating (3H), Antireflection

Active Area

170.496×127.872 mm (H×V)

Bezel Area

172.2×129.5 mm (H×V)

Outline Dimension

209.5×159 mm (H×V)

Outline Depth

14.4±1.0 mm

Holes & Brackets

Face mounting holes (4-M2) on left, right bezel

Landscape or Portrait

Landscape type

Touch Panel

Embeded (Projected Capacitive Touch)

Panel Cover

With Strengthened Cover Glass

AA084XE11-DA-01 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

800 cd/m² (Typ.)

Contrast Ratio

600 : 1 (Typ.) (Transmissive)

Display Color

262K/16.7M (6-bit / 8-bit)

Color Gamut

40% NTSC (CIE1931)

Response Time

4/12 (Typ.)(Tr/Td)

Viewing Angle

80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

6 o'clock

White color Chromaticity

Wx:0.313; Wy:0.329

White Variation

1.30 (Max.)(5 points)

Sunlight Readable

Y

AA084XE11-DA-01 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

Yes (180°)

AA084XE11-DA-01 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED

Lamp Amount

2 strings

Lamp Shape

2 strings

Lamp Life Time

100K(Typ.) (Hours)

Lamp Replaceable

No

Lamp Voltage

21.9/25.3V (Typ./Max.)

Lamp Current

125/135mA (Typ./Max.)

Interface Type

Connector

Lamp Driver Board

No

AA084XE11-DA-01 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (1 ch, 6/8-bit)

Input Voltage for Panel

3.3V (Typ.)

Input Current for Panel

380/650mA (Typ./Max.)

Interface Type

Connector

Signal Interface

I-PEX - 20186-202E-11F, Pitch:1.25 mm, Pin:20 pins

Below is some of our other LCD panel hot offer,pls check if you need any of them:

TM024HDHG07

TIANMA

2.4"

240×320

TM024HDHG13

TIANMA

2.4"

240×320

TM024HDHG22

TIANMA

2.4"

240×320

TM025CBH04

TIANMA

2.5"

240×320

TM025ZDZ01

TIANMA

2.5"

240×320

TM028HDZ58

TIANMA

2.8"

240×320

TM030HDHT1

TIANMA

3.0"

240×320

TM030ZDHG01

TIANMA

3.0"

320×320

TM035HBHT5

TIANMA

3.5"

240×320

TM035HDZP04

TIANMA

3.5"

240×320

TM035KBH11

TIANMA

3.5"

320×240

TM035KDH16

TIANMA

3.5"

240×64

TM035KDH18

TIANMA

3.5"

320×240

TM035KDHG06

TIANMA

3.5"

320×240

TM035PDHG01

TIANMA

3.5"

320×240

TM035PVHG01

TIANMA

3.5"

320×240

TM035WBHG04

TIANMA

3.5"

320×240

TM035WBZ00

TIANMA

3.5"

320×240

TM035WDH01

TIANMA

3.5"

320×240

TM035WDHG01

TIANMA

3.5"

320×240

TM035WVHG01

TIANMA

3.5"

480×640

TM035WVHG02

TIANMA

3.5"

480×640

TM035WVHG10

TIANMA

3.5"

480×640

TM042NDZG04

TIANMA

4.2"

480×640

TM043NBH03

TIANMA

4.3"

480×272

TM043NBH05

TIANMA

4.3"

320×240

TM043NDHG02

TIANMA

4.3"

480×272

TM043NDHG08

TIANMA

4.3"

480×272

TM050JDHP36

TIANMA

5.0"

720×1280

TM050QDH07

TIANMA

5.0"

640×480

TM050QFHR01

TIANMA

5.0"

640×480

TM070DDH15

TIANMA

7.0"

1024×600

TM070RDH03

TIANMA

7.0"

800×480

G043FW01 V0

AUO

4.3"

480×272

G050VVN01.0

AUO

5.0"

480×800

G070Y1-T01

INNOLUX

7.0"

800×480

G080Y1-T01

INNOLUX

8.0"

800×480

G084SN03 V0

AUO

8.4"

800×600

g084sn05 v3

AUO

8.4"

800×600

Product Tags:

lcd panel monitor



innolux lcd panel


Quality Mitsubishi 8.4inch AA084XE11-DA-01 LCD Panel for sale

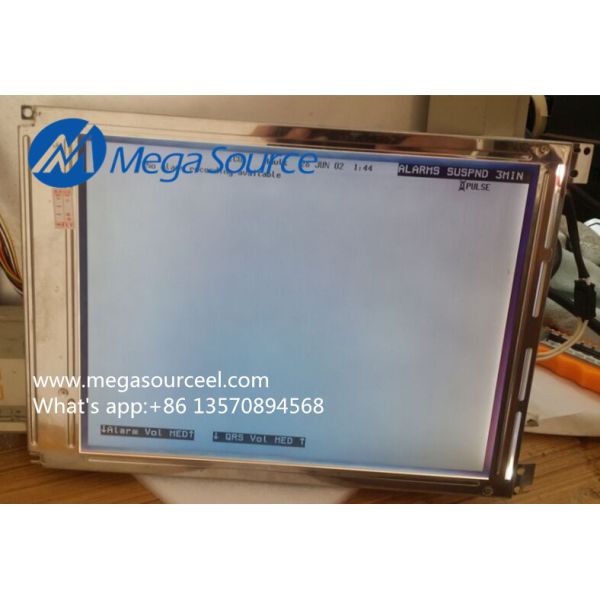

Mitsubishi 8.4inch AA084XE11-DA-01 LCD Panel Images
