TIANMA 2.8inch TM028HDH22 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

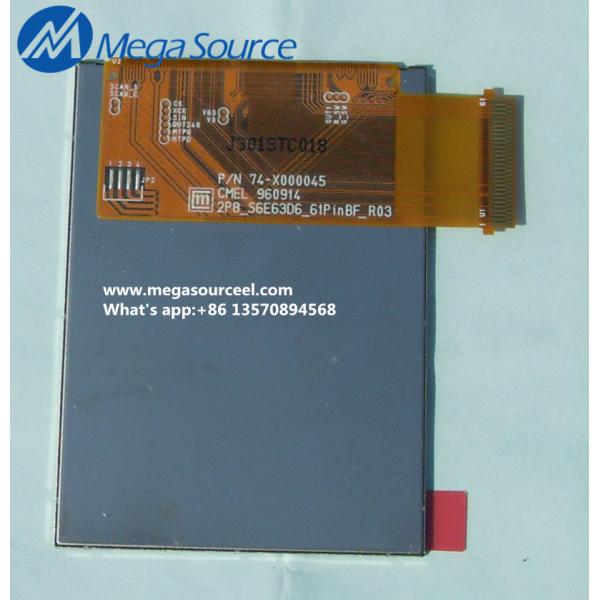

TIANMA 2.8inch TM028HDH22 LCD Panel

Place of Origin : Japan

Brand Name : TIANMA

Certification : RoHS Compliant

Model Number : TM028HDH22

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : TM028HDH22

Panel Brand : TIANMA

Descrition : a-Si TFT-LCD ,2.8 inch, 240×320

Panel Type : a-Si TFT-LCD

Contact Now

TIANMA 2.8inch TM028HDH22 LCD Panel

Specification for TM028HDH22:

TM028HDH22 Basic Information

Panel Model

TM028HDH22

Panel Brand

TIANMA

Descrition

a-Si TFT-LCD ,2.8 inch, 240×320

Panel Type

a-Si TFT-LCD

Operating Temperature

-20 ~ 70 °C

Storage Temperature

-30 ~ 80 °C

Remarks

Down side FPC (29.66mm length)

TM028HDH22 Mechanical Features

Dot Resolution

240(RGB)×320 (QVGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

141 PPI

Aspect Ratio

3:4 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.060×0.180 mm (H×V)

Pixel Pitch

0.180×0.180 mm (H×V)

Weight

TBD

Surface

Clear

Active Area

43.2×57.6 mm (H×V)

Outline Dimension

50×69.2 mm (H×V)

Outline Depth

2.47/3.27 (Typ./Max.) mm

Landscape or Portrait

Portrait type

Touch Panel

Without

TM028HDH22 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

250 cd/m² (Typ.)

Contrast Ratio

500 : 1 (Typ.) (Transmissive)

Display Color

262K (6-bit)

Color Gamut

50% NTSC (CIE1931)

Response Time

20 (Typ.)(Tr+Td)

Viewing Angle

70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

6 o'clock

White color Chromaticity

Wx:0.300; Wy:0.317

White Variation

1.25 (Typ.)(9 points)

Sunlight Readable

N

TM028HDH22 Electronics Feature

Vertical Frequency

60Hz

Driver IC

Built-in ILI9335

TM028HDH22 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED

Lamp Amount

1S4P

Lamp Shape

4 strings

Lamp Life Time

20K(Typ.) (Hours)

Lamp Voltage

3.2V (Typ.)

Lamp Current

20/25mA (Typ./Max.)

Lamps Power Consumption

256mW (Typ.)

Interface Type

Included in panel signal interface

Lamp Driver Board

No

TM028HDH22 Signal Interface

Signal Category

CPU

Signal Class

8/16-bit 8080 parallel

Input Voltage for Panel

2.8/2.8V (Typ.)(IDDIO/VCC)

Interface Type

FPC
