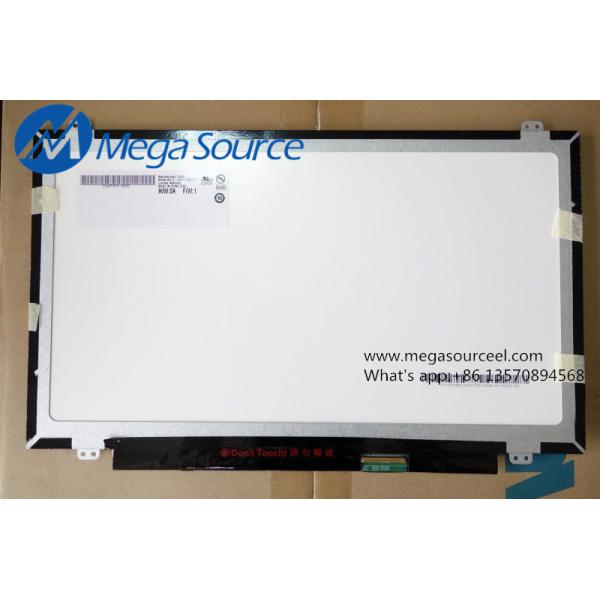

TOSHIBA 14inch LTM14C406S LCD Panel

Place of Origin : Japan

Brand Name : TOSHIBA

Certification : RoHS Compliant

Model Number : LTM14C406S

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : LTM14C406S

Panel Brand : TOSHIBA

Descrition : a-Si TFT-LCD ,14.0 inch, 1024×768

Panel Type : a-Si TFT-LCD

Contact Now

TOSHIBA 14inch LTM14C406S LCD Panel

Specification for LTM14C406S:

LTM14C406S Basic Information

Panel Model

LTM14C406S

Panel Brand

TOSHIBA

Descrition

a-Si TFT-LCD ,14.0 inch, 1024×768

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

LTM14C406S Mechanical Features

Dot Resolution

1024(RGB)×768 (XGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

91 PPI

Aspect Ratio

4:3 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.093×0.279 mm (H×V)

Pixel Pitch

0.279×0.279 mm (H×V)

Weight

580g

Active Area

285.696×214.272 mm (H×V)

Bezel Area

289.3×217.9 mm (H×V)

Outline Dimension

298.5×227 mm (H×V)

Outline Depth

7.2 (Max.) mm

Shape Style

Wedge (PCBA Bent, Depth ≥5.2mm)

Holes & Brackets

Side mounting holes (8-M2) on left, right bezel

Landscape or Portrait

Landscape type

Touch Panel

Without

LTM14C406S Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

70 cd/m² (Typ.)

Contrast Ratio

250 : 1 (Typ.) (Transmissive)

Display Color

262K (6-bit)

Response Time

50/50 (Max.)(Tr/Td)

Viewing Direction

6 o'clock

Sunlight Readable

N

LTM14C406S Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

Total Power Consumption

2.7W (Typ.)

LTM14C406S Backlight System

Lamp Position

Edge light type (Bottom side)

Lamp Type

CCFL

Lamp Amount

1 pcs

Lamp Shape

Straight

Lamp Voltage

700V (Typ.)

Lamp Current

2.0/2.5/6.0mA (Min./Typ./Max.)

Lamp Startup Voltage

1800V (Max.)(Ta=0℃)

Interface Type

Connector

Lamp Driver Board

No

LTM14C406S Signal Interface

Signal Category

LVDS

Signal Class

LVDS (1 ch, 6-bit)

Input Voltage for Panel

3.3V (Typ.)

Input Current for Panel

370mA (Typ.)

Interface Type

Connector

Signal Interface

JAE - FI-SEB20P-HF10, Pitch:1.25 mm, Pin:20 pins
