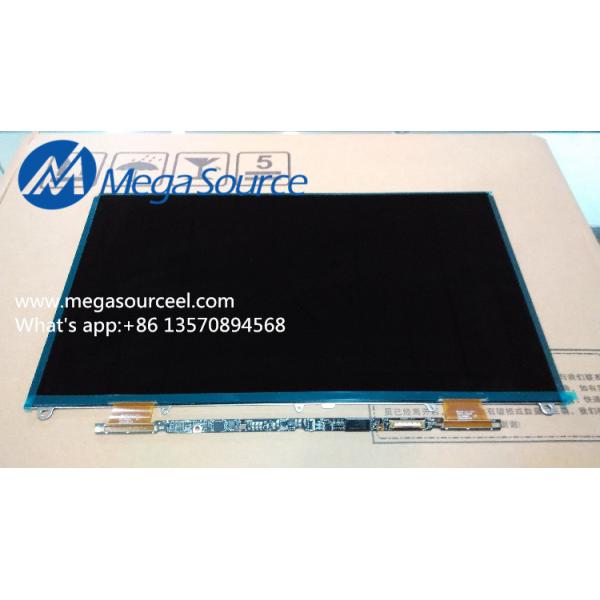

SAMSUNG 11.6inch LTN116AT07-401 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

SAMSUNG 11.6inch LTN116AT07-401 LCD Panel

Place of Origin : Japan

Brand Name : SAMSUNG

Certification : RoHS Compliant

Model Number : LTN116AT07-401

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : LTN116AT07-401

Panel Brand : SAMSUNG

Descrition : a-Si TFT-LCD ,11.6 inch, 1366×768

Panel Type : a-Si TFT-LCD

Contact Now

SAMSUNG 11.6inch LTN116AT07-401 LCD Panel

Specification for LTN116AT07-401:

LTN116AT07-401 Basic Information

Panel Model

LTN116AT07-401

Panel Brand

SAMSUNG

Descrition

a-Si TFT-LCD ,11.6 inch, 1366×768

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

Remarks

for Lenovo IdeaPad S210/S210 Touch, S215/S215 Touch

LTN116AT07-401 Mechanical Features

Dot Resolution

1366(RGB)×768 (WXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

135 PPI

Aspect Ratio

16:9 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.0625×0.1875 mm (H×V)

Pixel Pitch

0.1875×0.1875 mm (H×V)

Surface

Antiglare

Active Area

256.125×144 mm (H×V)

Landscape or Portrait

Landscape type

Touch Panel

Without

LTN116AT07-401 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

200 cd/m² (Typ.)

Display Color

262K (6-bit)

Sunlight Readable

N

LTN116AT07-401 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

LTN116AT07-401 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED
