Kyocera 19inch TCG190SX4AB-A00 LCD Panel

Place of Origin : Japan

Brand Name : Kyocera

Certification : RoHS Compliant

Model Number : TCG190SX4AB-A00

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : TCG190SX4AB-A00

Panel Brand : Kyocera

Descrition : a-Si TFT-LCD ,19.0 inch, 1280×1024

Panel Type : a-Si TFT-LCD

Contact Now

Kyocera 19inch TCG190SX4AB-A00 LCD Panel

Specification for TCG190SX4AB-A00:

TCG190SX4AB-A00 Basic Information

Panel Model

TCG190SX4AB-A00

Panel Brand

Kyocera

Descrition

a-Si TFT-LCD ,19.0 inch, 1280×1024

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

Remarks

Touch panel: KTP190AGAC-C00

TCG190SX4AB-A00 Mechanical Features

Dot Resolution

1280(RGB)×1024 (SXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

86 PPI

Aspect Ratio

5:4 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.098×0.294 mm (H×V)

Pixel Pitch

0.294×0.294 mm (H×V)

Surface

Glare (Haze 0%), Hard coating (3H)

Active Area

376.32×301.06 mm (H×V)

Outline Dimension

396×324 mm (H×V)

Outline Depth

16.93/21.75 (Typ./Max.) mm

Holes & Brackets

Side mounting holes (4-M3) on left, right bezel

Landscape or Portrait

Landscape type

Touch Panel

Embeded (4-wire Resistive, Glass / Glass)

TCG190SX4AB-A00 Optical Features

Display Mode

AWV, Normally Black, Transmissive

Brightness

240 cd/m² (Typ.)

Contrast Ratio

2000 : 1 (Typ.) (Transmissive)

Display Color

16.7M (6-bit + Hi-FRC)

Response Time

15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

Symmetry

White color Chromaticity

Wx:0.313; Wy:0.329

White Variation

1.25/1.33 (Typ./Max.)(9 points)

Sunlight Readable

N

TCG190SX4AB-A00 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

TCG190SX4AB-A00 Backlight System

Lamp Position

Edge light type (Top and Bottom)

Lamp Type

CCFL

Lamp Amount

4 pcs

Lamp Shape

Straight

Lamp Life Time

50K(Typ.) (Hours)

Lamp Voltage

653/796V (Typ./Max.)

Lamp Current

3.0/7.5/8.0mA (Min./Typ./Max.)

Lamp Operating Frequency

60±20KHz

Lamp Startup Voltage

1300/1690V (Min.)(Ta=+25/0℃)

Lamps Power Consumption

19.6/20.56W (Typ./Max.)

Interface Type

Connector

Lamp Driver Board

No

TCG190SX4AB-A00 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (2 ch, 8-bit)

Input Voltage for Panel

5.0V (Typ.)

Input Current for Panel

1.5/1.8A (Typ./Max.)

Panel Power Consumption

7.5/9.0W (Typ./Max.)

Interface Type

Connector

Signal Interface

JAE - FI-XB30SSL-HF15, Pitch:1.0 mm, Pin:30 pins

Below is some of our other LCD panel hot offer,pls check if you need any of them:

LS030T8LX01

SHARP

3.0"

480×854

LQ030B7UB02

SHARP

3.0"

240×400

TX09D70VM1CAA

KOE

3.5"

240×320

COM50H5M67XLX

5.0"

480×272

LS040S3DX01

SHARP

4.0"

600×800

LS030B3UW01

SHARP

3.0"

240×400

LS038Y3LX01

SHARP

3.8"

480×800

LMS300CC04

SAMSUNG

3.0"

640×480

COM48H4M87ULC

4.8"

720×1280

LQ035Q2DD54

SHARP

3.5"

320×240

LS037V7DD06R

SHARP

3.7"

480×640

TX09D80VM3CBA

KOE

3.5"

240×320

LS037V7DD05

SHARP

3.7"

480×640

TX09D80VM3CDA

KOE

3.5"

240×320

LQ035Q5DG04

SHARP

3.5"

320×240

TX09D70VM1CBA

KOE

3.5"

240×320

TX09D70VM1CBB

KOE

3.5"

240×320

TM038QV-67A02A

SANYO

3.8"

320×240

LQ035Q2DD55

SHARP

3.5"

240×320

LS024Q8DD92

SHARP

2.4"

240×320

LS024Q8DB91

SHARP

2.4"

240×320

LQ035Q2DD56

SHARP

3.5"

320×240

UG-2828GDEDF11

　

1.5"

128×128

LQ070Y3DG03

SHARP

7.0"

800×480

LQ043T1DG03A

SHARP

4.3"

480×272

LQ043T1DG04

SHARP

4.3"

480×272

KCS6448FSTT-X6

BOE

10.4"

640×480

KHB084SV1AA-G83

BOE

8.4"

800×600

TX13D03VM1CAA

KOE

5.0"

640×480

LMS245DC07

SAMSUNG

2.4"

480×360

TM038QV-67A02

SANYO

3.8"

320×240

NL6448BC26-08D

NLT

8.4"

640×480

LM215WF3-SLL1

LG Display

21.5"

1920×1080

LQ080V3DG01

SHARP

8.0"

640×480

LM215WF3-SLC1

LG Display

21.5"

1920×1080

LS040B3SX01

SHARP

4.0"

640×960

Product Tags:

lcd panel monitor



innolux lcd panel

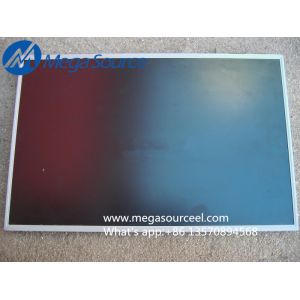

Quality Kyocera 19inch TCG190SX4AB-A00 LCD Panel for sale

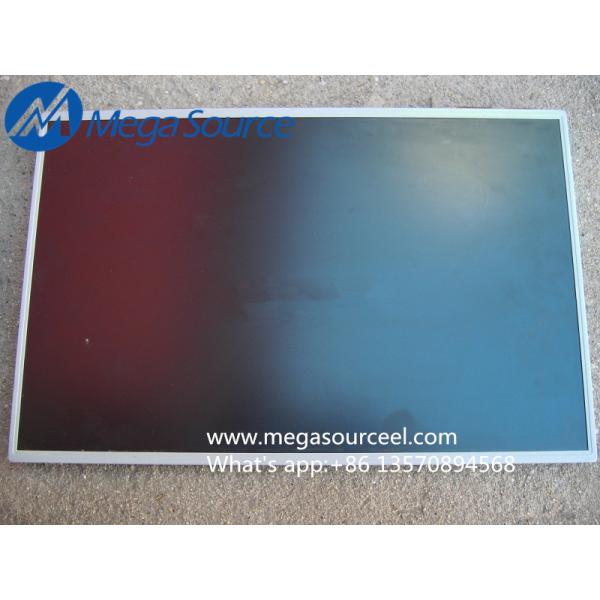

Kyocera 19inch TCG190SX4AB-A00 LCD Panel Images
