SAMSUNG 13.3inch LTN133AT17-F01 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

SAMSUNG 13.3inch LTN133AT17-F01 LCD Panel

Place of Origin : Japan

Brand Name : SAMSUNG

Certification : RoHS Compliant

Model Number : LTN133AT17-F01

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : LTN133AT17-F01

Panel Brand : SAMSUNG

Descrition : a-Si TFT-LCD ,13.3 inch, 1366×768

Panel Type : a-Si TFT-LCD

Contact Now

SAMSUNG 13.3inch LTN133AT17-F01 LCD Panel

Specification for LTN133AT17-F01:

LTN133AT17-F01 Basic Information

Panel Model

LTN133AT17-F01

Panel Brand

SAMSUNG

Descrition

a-Si TFT-LCD ,13.3 inch, 1366×768

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

LTN133AT17-F01 Mechanical Features

Dot Resolution

1366(RGB)×768 (WXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

118 PPI

Aspect Ratio

16:9 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.0716×0.2148 mm (H×V)

Pixel Pitch

0.2148×0.2148 mm (H×V)

Active Area

293.42×164.97 mm (H×V)

Shape Style

Wedge (PCBA Bent, Depth ≥5.2mm)

Landscape or Portrait

Landscape type

Touch Panel

Without

LTN133AT17-F01 Optical Features

Display Mode

TN, Normally White, Transmissive

Display Color

262K (6-bit)

Sunlight Readable

N

LTN133AT17-F01 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

LTN133AT17-F01 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED

Interface Type

Included in panel signal interface

Lamp Driver Board

Embedded (LED Driver)

Below is some of our other LCD panel hot offer,pls check if you need any of them:

LM046QB1S02

SHARP

4.6"

320×240

LM104VC1T51

SHARP

10.4"

640×480

LM104VC1T51H

SHARP

10.4"

640×480

LM230WF3-SLB2

LG Display

23.0"

1920×1080

LM230WF3-SLE1

LG Display

23.0"

1920×1080

LQ035Q1DH01

SHARP

3.5"

320×240

LQ035Q7DB02R

SHARP

3.5"

240×320

LQ035Q7DH05

SHARP

3.5"

240×320

LQ043T1DG03

SHARP

4.3"

480×272

LQ070Y3LG4A

SHARP

7.0"

800×480

LQ084V3DG02

SHARP

8.4"

640×480

LQ085Y3DG15

SHARP

8.5"

800×480

LQ104V1DG5A

SHARP

10.4"

640×480

LQ10PX21

SHARP

10.0"

1024×768

LQ121S1DG43

SHARP

12.1"

800×600

LQ121S1LG41

SHARP

12.1"

800×600

LQ121S1LG51

SHARP

12.1"

800×600

LQ121S1LG88

SHARP

12.1"

800×600

LQ150X1DWF1

SHARP

15.0"

1024×768

LQ9D340H

SHARP

8.4"

640×480

LS037V7DW01

SHARP

3.7"

480×640

LT070AC46000

TOSHIBA

7.0"

800×480

LTD104EA5S

TOSHIBA

10.4"

1024×768

LTD121EC5UG

TOSHIBA

12.1"

1024×768

LTE400WQ-F02

SAMSUNG

4.0"

480×272

LTM10C209H

TOSHIBA

10.4"

640×480

LTM10C210

TOSHIBA

10.4"

640×480

LTM10C273

TOSHIBA

10.4"

800×600

LTTD240400030-L3-TF

3.0"

240×400

M201UN02 V3

AUO

20.1"

1600×1200

NL3224AC35-01

NLT

5.5"

320×240

NL3224BC35-20

NLT

5.5"

320×240

NL6448BC33-59D

NLT

10.4"

640×480

NL6448BC33-64D

NLT

10.4"

640×480

NL8060BC26-27

NLT

10.4"

800×600

Product Tags:

portable lcd monitor



innolux lcd panel


Quality SAMSUNG 13.3inch LTN133AT17-F01 LCD Panel for sale

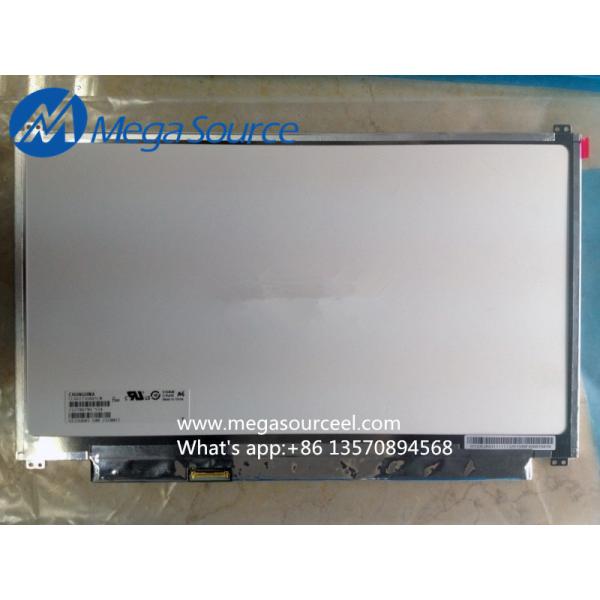

SAMSUNG 13.3inch LTN133AT17-F01 LCD Panel Images
